How To Configure Airport Express to Extend Wireless Network ?

Method-1

Airport Express Extend Network

Configure Airport Express to Extend Wireless Network

  1. Place any extended Wi-Fi base stations within range of the primary Wi-Fi base station.
  2. Ensure that all 802.11n Wi-Fi base stations are powered on and allow them time to appear in the AirPort Menu Extra.

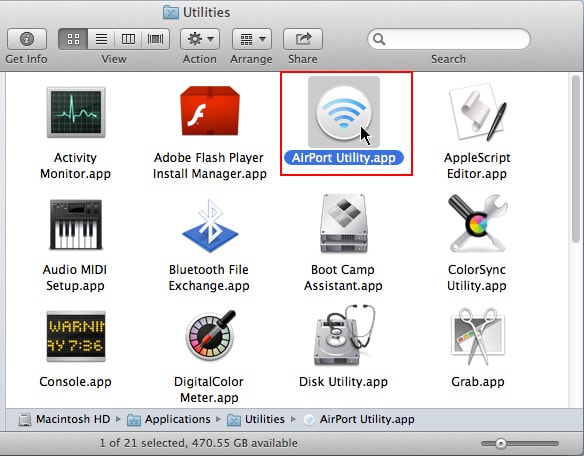

  3. Open AirPort Utility (On a Mac choose Go > Applications from your desktop click the Utilities folder then open AirPort Utility. In Microsoft Windows choose Start > All Programs > AirPort to start AirPort Utility).
  4. Select the Extended Wi-Fi base station in the Base Station Chooser then click Continue. Note: If you see a message appear that indicates that the Wi-Fi base station has been reset click Cancel to continue.
  5. Click Manual Setup. Enter the base station password if necessary.
  6. Click AirPort in the toolbar.
  7. Click Wireless.
  8. Choose "Extend a wireless network" from the Wireless Mode menu.
  9. Choose the network you want to extend from the Network Name menu.
  10. Enter the network and device password if necessary then click Update.
  11. The next window may indicate that there are some problems. Resolve the problems then click Update.

Method-2

Configure Airport Express to Extend Wireless Network

Step 1 : Power on all 802.11n Wi-Fi base stations and allow them time to appear in the AirPort Menu Extra.

Step 2 : Open AirPort Utility (On a Mac choose Go > Applications from your desktop click the Utilities folder then open AirPort Utility. In Microsoft Windows choose Start > All Programs > AirPort to start AirPort Utility).

Step 3 : Select the primary Wi-Fi base station in the Base Station Chooser then click Continue. Note: If you see a message appear that indicates that the Wi-Fi base station has been reset click Cancel to continue.

Step 4 : Click Manual Setup. Enter the base station password if necessary.

Step 5 : Click AirPort in the toolbar.

Step 6 : Click Wireless.

Step 7 : Choose "Create a wireless network" from the Wireless Mode menu.

Step 8 : Select the "Allow this network to be extended" checkbox.

Step 9 : Enter a Wireless Network Name.

Step 10 : Optional: By default Wireless Security is set to None so that no password will be required to join the network. We recommend you click on the Wireless Security menu select WPA2 Personal and create a password between 8 and 63 characters long.

Step 11 : From the Radio Channel Selection menu select Automatic.

Step 12 : Click Update.

Step 13 : The next window may indicate that there are some problems. Resolve the Airport express extend network problems then click Update.
